Scheme history
Accessing scheme history

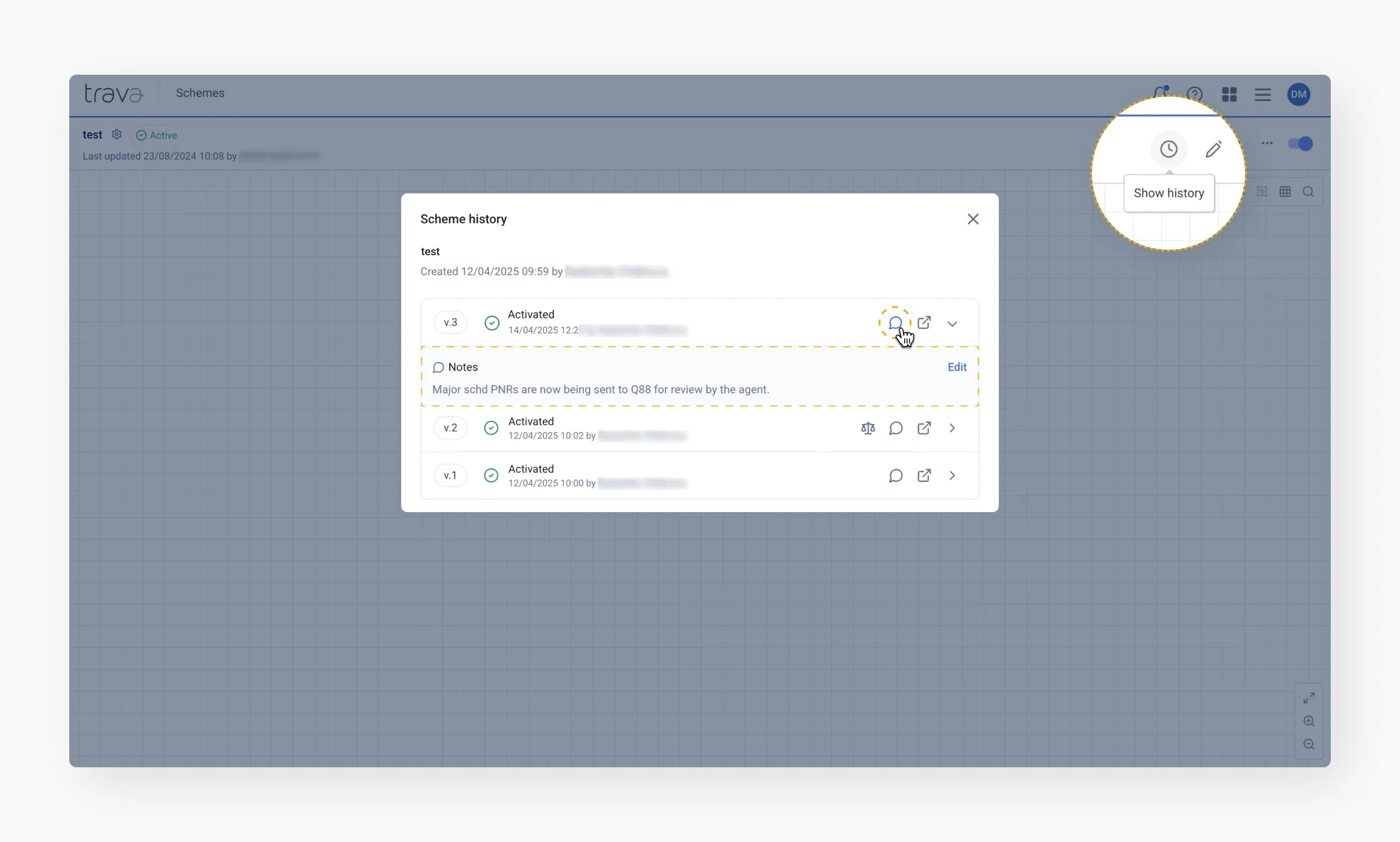

The history log begins when a scheme is first activated. You can view it regardless of its current status. Click the Show history icon in the top-right area of the Control panel to open the history panel.
Versioning and activation

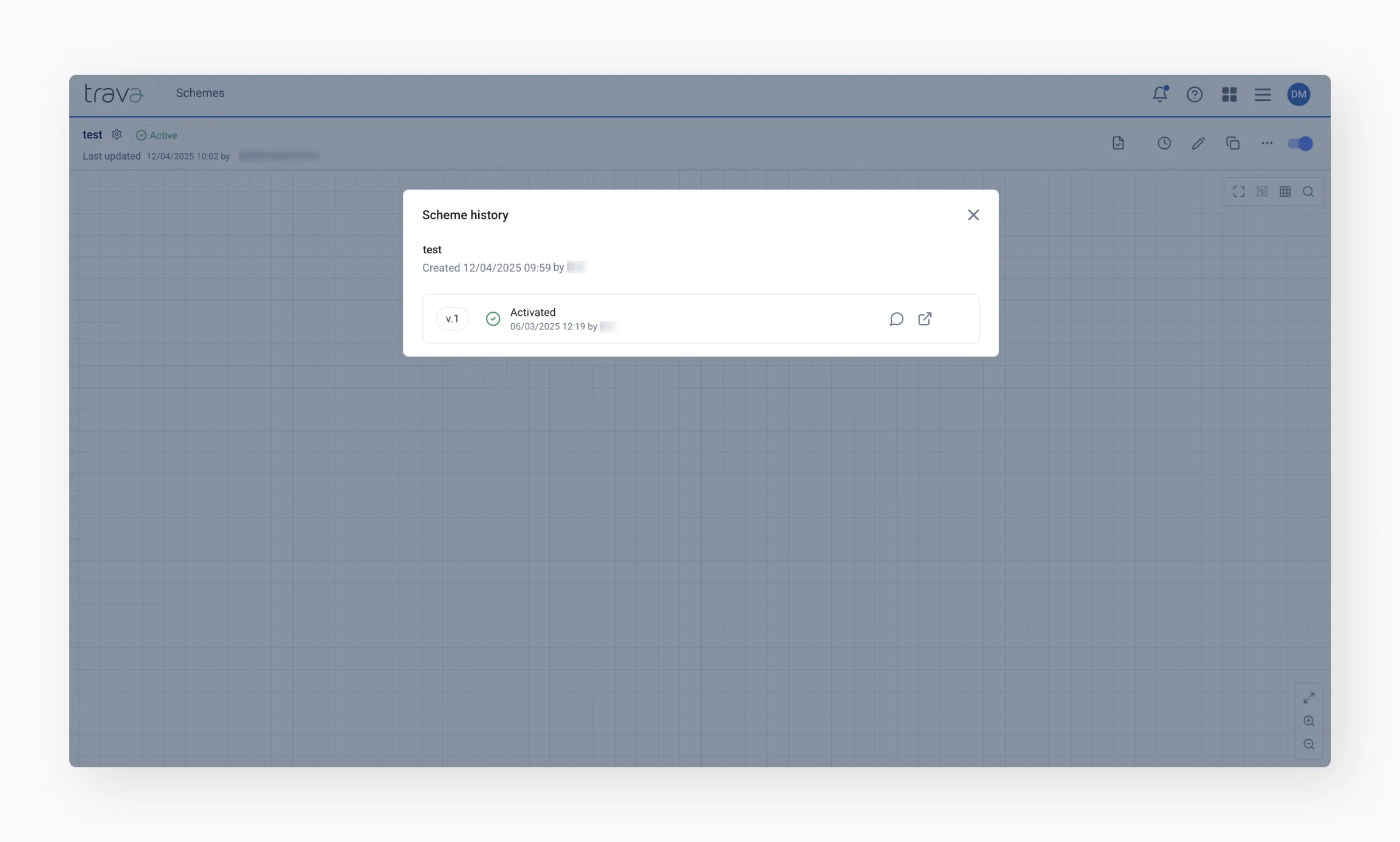

Upon its first activation, the scheme is assigned a version number (e.g., v.1). Each time a draft is activated thereafter, a new record is created, and the version number increments.
ℹ Note: The version will be attributed to the person who activated the draft, even if another user made the changes to it.
Track changes
- Each time a scheme is activated and a new version is created, the system records all actions performed.

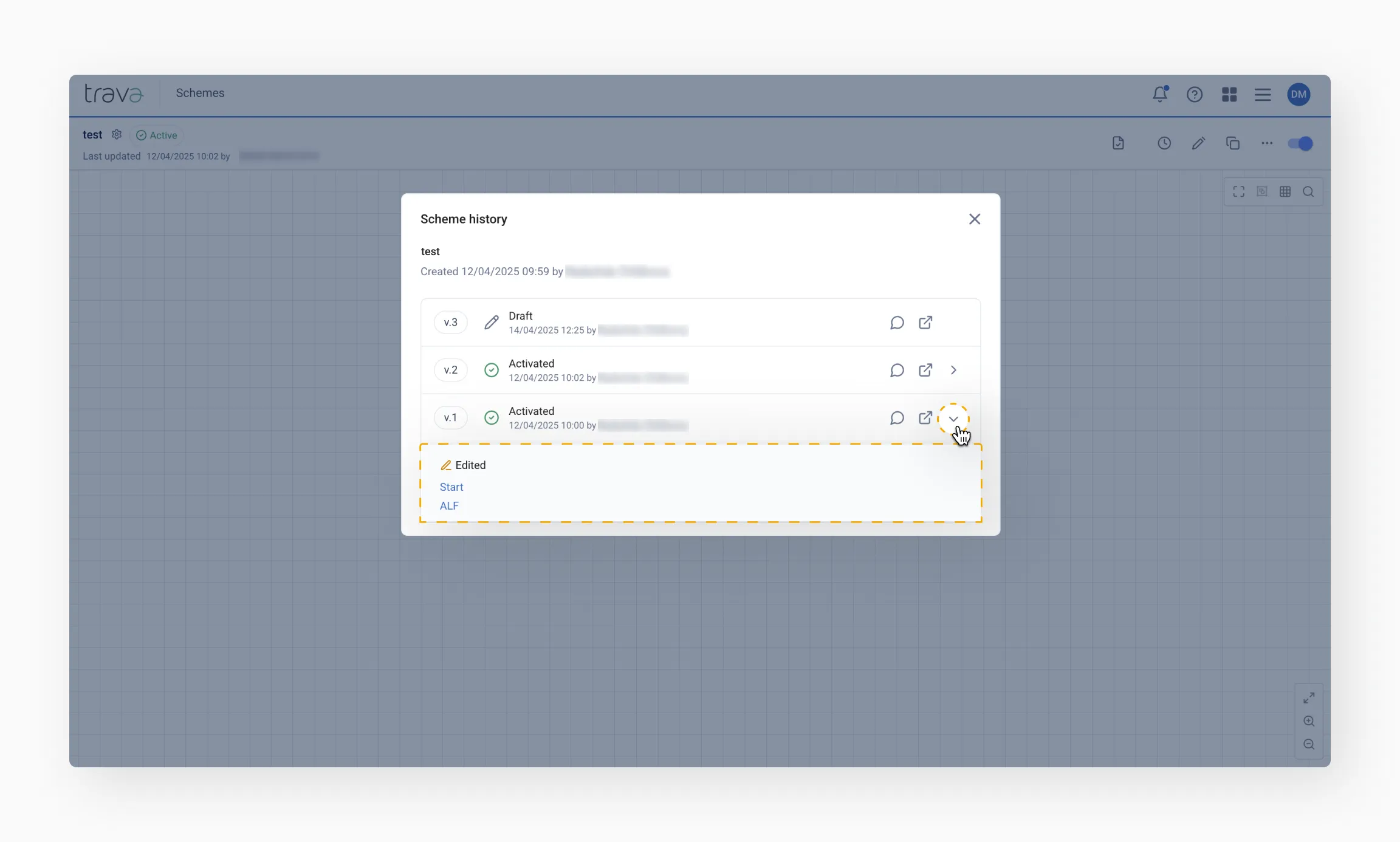

- Click the arrow at the end of a version line to expand and view detailed information.
- You'll see a list of modified elements and the specific actions taken.
- Click on an element name to open it in the scheme editor and review its current settings.

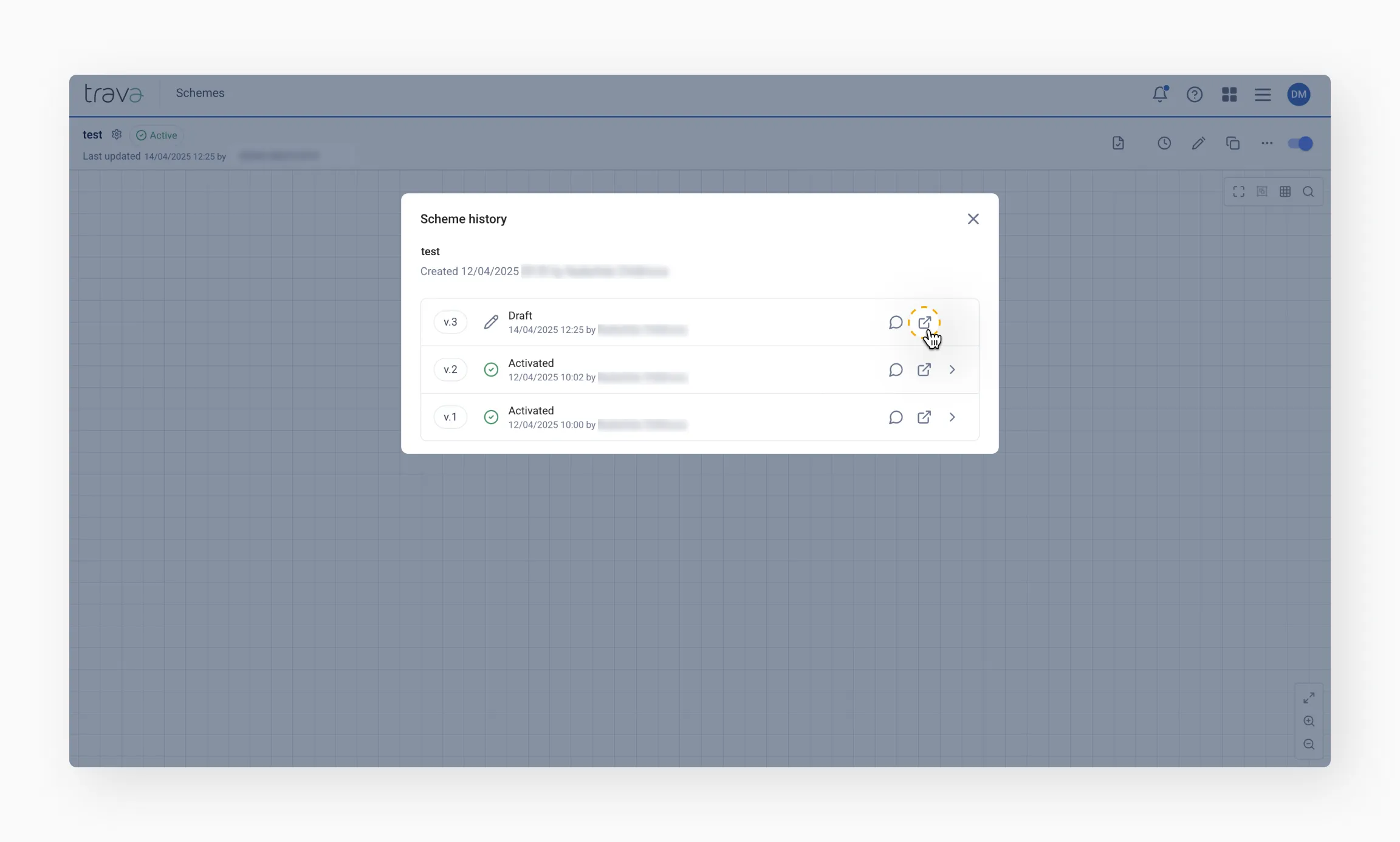

You can also view the entire scheme for a specific version by clicking the Open scheme icon.
Commenting on changes

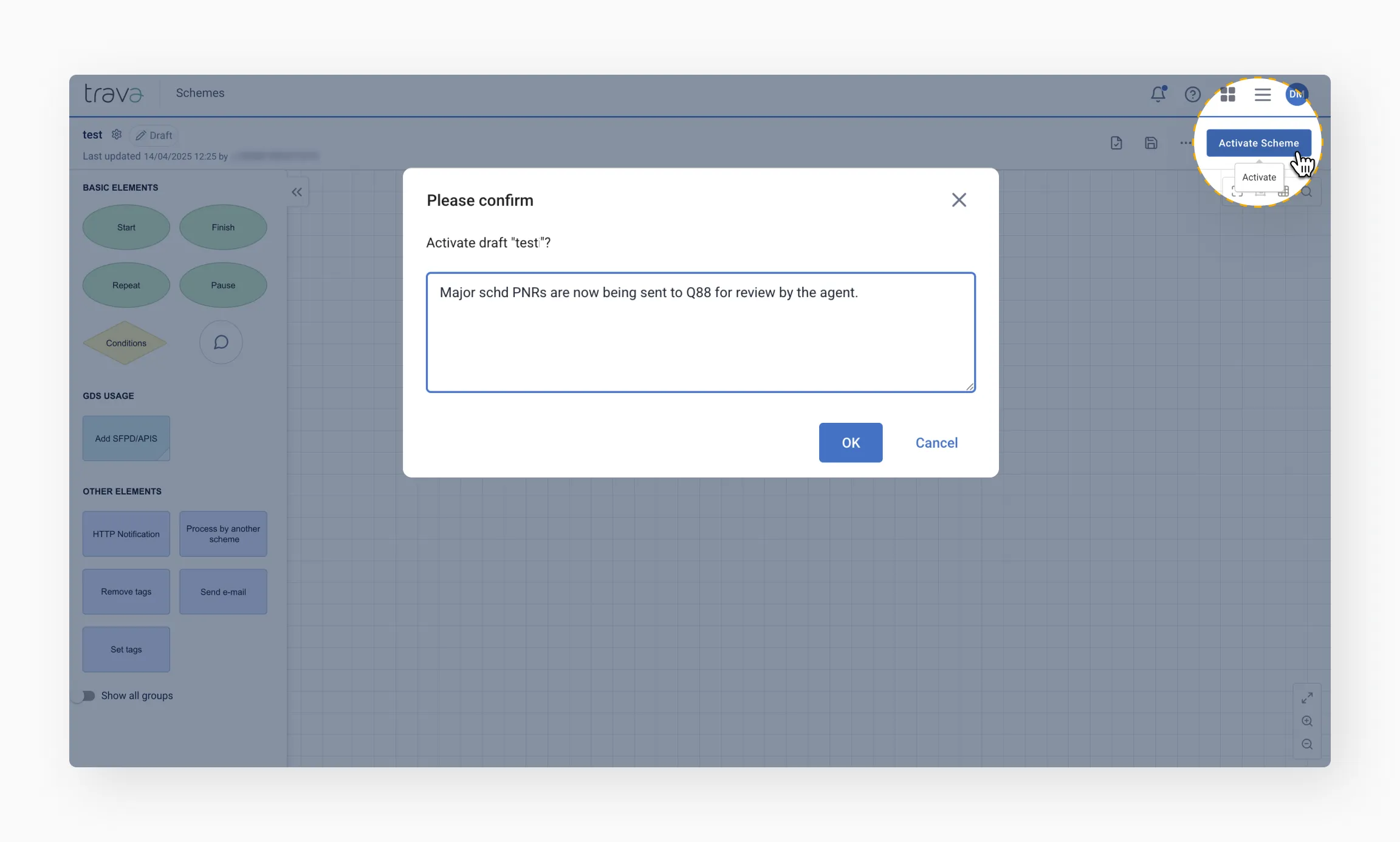

To make the history easier to understand, add comments when activating a draft.
These comments can explain why changes were made and are stored in the version history for future reference.
Final tips
- Use Scheme history to keep track of all changes and ensure accountability across your team.
- Add comments when activating a draft – it helps others understand the context of your edits.
- Remember that the version author is the person who activates the scheme, not necessarily the one who made the edits.
- Take advantage of element-level tracking to quickly review what was modified and why.
- Regularly check the history log to stay informed and maintain full control over scheme development.
